In the era of data deluge, countless pieces of information flow ceaselessly through thin optical fibers, and the 100GBASE-SR4 is the sprint champion on this information superhighway.
In today’s high-speed world of data centers, the 100GBASE-SR4 optical module plays an indispensable role. As a short-distance, high-speed optical communication solution, it achieves an astonishing transmission rate of 100Gbps by simultaneously transmitting data on four parallel multimode fibers.
The Technology of Parallel Optical Communication
The 100GBASE-SR4 represents a sophisticated design in optical communication technology. It employs four independent 25Gbps channels, achieving full-duplex communication through eight multimode fibers (four for transmitting and four for receiving).
This parallel architecture is like integrating a four-lane highway into the world of optical fiber, allowing data to flow unimpeded.
The core lies in its parallel optical technology, which is fundamentally different from traditional serial transmission. At the transmitting end, electrical signals are converted into optical signals by a four-array laser, and then transmitted in parallel on ribbon multimode fibers.
The receiver uses a four-array photodiode to convert the parallel optical signal back into a parallel electrical signal.
This module employs 850nm wavelength VCSEL technology, achieving a balance between performance and cost while delivering excellent signal integrity and high efficiency. VCSEL technology provides better power control and signal quality, laying the foundation for large-scale deployment.
Features

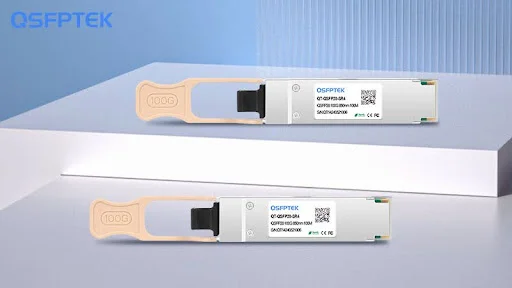

The 100GBASE-SR4’s brilliance lies in several technical details. It uses a QSFP28 form factor, a compact hot-swappable design measuring only 14mm × 8.5mm, yet housing a complete set of optical components.
This compact design allows up to 36 100G ports to be installed on a 1RU switch, significantly increasing port density in data centers.
In terms of power consumption, the 100GBASE-SR4 performs exceptionally well, typically consuming less than 3.5 watts. For large data centers with tens of thousands of ports, this low power consumption translates into significant electricity savings and a smaller carbon footprint.
Temperature adaptability is another highlight. It can operate stably in ambient temperatures ranging from 0°C to 70°C, a wide temperature range that allows it to adapt to various harsh data center environments.
It also integrates digital optical monitoring capabilities, allowing real-time monitoring of parameters such as module temperature, voltage, and optical power, greatly facilitating network management.
Application Scenarios
The 100GBASE-SR4 has found its niche in modern data centers. Especially in Spine-Leaf network architectures, it becomes an ideal choice for interconnecting leaf switches and backbone switches.
In this architecture, communication between any two devices requires only a few hops, significantly reducing latency.
In practical applications, the 100GBASE-SR4 is perfectly suited for short-distance interconnection scenarios between racks and cabinets within data centers. It supports transmission distances of up to 100 meters over OM4 multimode fiber and 70 meters over OM3 fiber.
This perfectly covers the connection needs between most data center cabinets.
Compared to other 100G solutions, such as 100GBASE-LR4 or 100GBASE-CWDM4, SR4 excels in cost-effectiveness for short-distance applications. Not only is the module itself more competitively priced, but the cost of its accompanying multimode fiber cabling is also significantly lower than that of single-mode fiber.
Not a Panacea
While 100GBASE-SR4 performs exceptionally well in short-distance applications, it also has limitations. The biggest limitation comes from the transmission distance—even using high-quality OM4 fiber, the maximum transmission distance is only 100 meters.
For connections requiring longer distances, single-mode fiber solutions such as LR4 or ER4 need to be considered.
Another challenge stems from cabling complexity. 100GBASE-SR4 uses MTP/MPO-12 interface connectors, which are more complex than traditional full-duplex LC connectors, placing higher demands on installation and maintenance personnel.
With the evolution of network technology, 200G, 400G, and even 800G standards have emerged. However, 100GBASE-SR4 still holds a vital position in today’s data centers, representing a perfect balance between technological maturity, performance, and cost.
The Road Ahead
Faced with competition from higher speeds, 100GBASE-SR4 hasn’t stopped. The technology continues to optimize, and future SR4 modules may see further reductions in power consumption, slight increases in transmission distance, and compatibility with higher speeds.
In the global market, 100G QSFP28 SR4 optical modules continue to experience steady growth. This demonstrates its irreplaceable role in the current data center ecosystem.
For many organizations, 100GBASE-SR4 remains a key technology for building reliable and scalable data center fiber connections as they evolve towards 200G and 400G infrastructure.
Future data centers may move towards 400G, 800G, or even higher speeds, but 100GBASE-SR4 has already established its place in history. Unlike the distant and mysterious submarine cables spanning oceans, it silently plays a crucial role in every cloud service request and every data exchange.
In the grand picture of the information age, it is these unseen sprint champions who support the digital world that is within our reach.
